What is the Pipeline Decommissioning and Recycling Process?

Pipeline decommissioning and recycling involve safely removing oil and gas pipelines from service when they reach the end of their useful life. This occurs when pipelines are no longer operational due to age, deterioration, or depletion of the resources they transport. A structured decommissioning process is then initiated to ensure environmental protection and public safety through the proper handling of infrastructure that once carried hazardous materials.

The process typically starts with thorough cleaning operations, where all remaining oil and gas products are purged from the pipeline. Industry professionals use techniques like nitrogen purging and specialized cleaning agents to remove hydrocarbons and other residual materials. This cleaning phase is crucial for preventing future contamination and preparing the pipeline for its next stage—whether that’s abandonment or recovery.

Following cleaning, the pipeline must be formally disconnected from active facilities and properly sealed. Operators then have two main options: abandonment-in-place or complete removal for recycling. In abandonment-in-place, which accounts for over 97% of decommissioned pipelines in offshore environments, the cleaned pipelines remain on site but are permanently sealed to prevent environmental hazards. For pipelines selected for recovery, the materials are excavated and transported to facilities where they can be processed for reuse in other applications or recycled as valuable steel resources.

What Are the Key Steps in Pipeline Decommissioning?

Pipeline decommissioning involves a systematic process to ensure environmental protection and safety. It requires careful planning and execution to prevent potential hazards from improperly abandoned infrastructure.

Step 1: Oil Removal

The initial phase involves removing all oil from the pipeline system. Operators use specialized cleaning instruments, such as pigs, propelled through the pipeline to expel residual oil. Nitrogen purging is another technique that forces out hydrocarbons while creating an inert environment.

Proper oil removal prevents future environmental contamination. A 2021 incident following Hurricane Ida highlighted the consequences of inadequate cleaning when an abandoned pipeline leaked oil, creating a 14-mile oil slick off Louisiana’s coast.

The goal is to eliminate all hydrocarbons to prevent explosion risks and protect surrounding ecosystems. This step often requires multiple passes with various tools to ensure thorough evacuation of contents.

Step 2: Pipeline Cleaning

After oil removal, the pipeline’s interior needs thorough cleaning using a combination of cleaning solutions and specialized tools to eliminate all hydrocarbon residues from the inner walls.

Cleaning solutions often include alkaline-based detergents that break down paraffin and asphaltene deposits. These chemicals dissolve and remove old oil from pipeline surfaces. Many operators use multiple-pig trains with chemical batches separated by foam or gel pigs.

The pipeline must be cleaned until testing shows the oil-in-water content is below regulatory thresholds. Industry standards typically require levels below 30 mg/liter before proceeding to the next decommissioning phase.

Step 3: Disconnection from Active Facilities

Once cleaning is complete, the pipeline must be physically disconnected from all active production systems, including severing connections to pump stations, gas reservoirs, and other operational facilities.

Disconnection prevents hydrocarbons from re-entering the decommissioned line. Operators seal the pipeline ends to create permanent barriers between the abandoned infrastructure and active production channels.

This step requires careful planning to ensure the integrity of remaining operational systems. Pipeline operators must document all disconnection points for regulatory compliance and future reference.

Step 4: Pipeline Segmentation

Segmentation involves installing permanent physical barriers strategically along the pipeline. These barriers prevent the decommissioned line from acting as a water conduit, which could cause environmental issues.

Segmentation plugs create isolated sections throughout the pipeline length. The placement of these barriers depends on factors like terrain, erosion potential, and pipeline characteristics.

For pipelines abandoned in place, segmentation helps prevent ground settlement or instability. The segmentation process typically uses specially designed concrete materials to fill sections of the pipeline.

Step 5: Ongoing Monitoring and Maintenance

Decommissioned pipelines require ongoing monitoring and maintenance. Pipeline owners remain responsible for these structures indefinitely.

Monitoring activities include maintaining cathodic protection systems to prevent corrosion, conducting regular right-of-way patrols, performing depth-of-cover surveys, and maintaining accurate signage.

Owners must also ensure the pipeline location is registered in Call/Click Before You Dig programs to prevent accidental damage during future construction activities in the area.

Environmental oversight continues through periodic inspections to verify no leakage or ground disturbance occurs around the decommissioned infrastructure.

Proper decommissioning ensures minimal environmental impact while maintaining site safety. These five steps represent standard industry practices across both onshore and offshore pipeline retirement projects. Regulatory bodies like the Federal Energy Regulatory Commission oversee this process to ensure compliance with environmental protection standards.

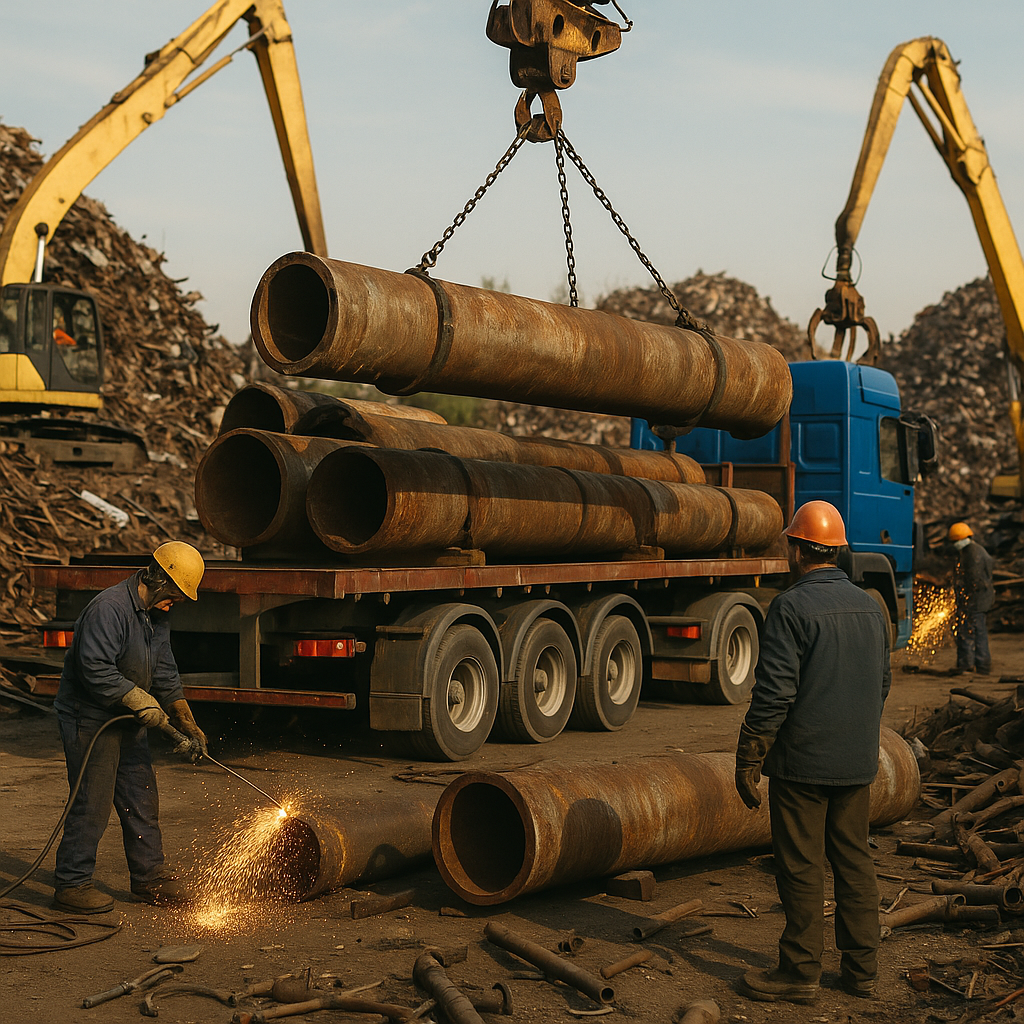

How Are Decommissioned Pipelines Recycled or Reused?

When pipelines reach the end of their operational life, they can be recovered and given new purpose through recycling or repurposing. For onshore pipelines, operators typically recover the materials and channel them into the recycling stream as valuable scrap metal. The steel components are particularly valuable, as they can be melted down and reformed into new products, reducing the need for virgin metal extraction.

Material recovery from decommissioned pipelines offers several sustainability benefits. The recycling process for steel pipelines is highly efficient, with nearly 100% of the metal being recoverable. A typical mile of 24-inch pipeline can yield over 400 tons of steel for recycling. This recovered metal requires significantly less energy to process than producing new steel from raw materials, resulting in reduced carbon emissions and conservation of natural resources.

Beyond simple metal recovery, decommissioned pipelines offer various reuse opportunities:

• Direct refurbishment: Sections in good condition can be refurbished and redeployed in less demanding applications or in developing regions where new infrastructure costs are prohibitive.
• Water management systems: Abandoned pipelines can serve as conduits for irrigation systems, stormwater drainage, or freshwater transport, providing critical infrastructure without new construction.
• Cable conduits: The hollow structure of pipelines makes them suitable for housing telecommunications cables, electrical lines, or fiber optic networks, eliminating the need for disruptive trenching.
• Structural components: Sections of decommissioned pipelines can be repurposed as structural elements in construction projects, ranging from building foundations to bridge supports.

The environmental benefits of pipeline recycling and reuse extend beyond material conservation. By repurposing existing infrastructure, companies avoid the environmental disruption associated with new excavation and construction. Additionally, proper recycling of pipeline materials prevents potential contamination from abandoned structures and reduces the volume of industrial waste destined for landfills.

Some innovative examples of pipeline reuse include converting segments into wildlife corridors beneath roadways, using sections as artificial reef structures in marine environments (when properly cleaned and prepared), and repurposing pipe sections for rainwater collection in agricultural settings. These applications show how decommissioned pipelines can continue providing value long after their original purpose has been fulfilled.

For offshore pipelines, the recycling process may be more complex due to marine growth and retrieval challenges, but the recovery of these materials still represents a significant opportunity for resource conservation. Once recovered, offshore pipeline materials undergo thorough cleaning before entering the same recycling streams as their onshore counterparts.

The future of pipeline recycling continues to evolve as companies develop more sophisticated methods for material recovery and innovative approaches to repurposing. These efforts align with broader industry goals for waste minimization and creating more sustainable practices throughout the pipeline lifecycle.

What Are the Regulations and Responsibilities for Pipeline Decommissioning?

Pipeline decommissioning is governed by a comprehensive regulatory framework involving multiple government agencies. In the United States, the Federal Energy Regulatory Commission (FERC) is the primary regulatory body, collaborating with the Department of Transportation’s Pipeline and Hazardous Materials Safety Administration (PHMSA) and the Bureau of Safety and Environmental Enforcement (BSEE) for offshore pipelines.

Regulatory Oversight and Compliance Requirements

FERC has established specific conditions for pipeline abandonment under 49 CFR 192.727, which mandates the disconnection, proper filling, and sealing of pipelines at the end of their life. These regulations ensure public safety and environmental protection. For offshore pipelines, BSEE enforces standards under 30 CFR 250, Subpart Q, providing detailed requirements for safely sealing wells and managing decommissioned infrastructure.

State agencies may impose additional requirements beyond federal regulations, often addressing specific regional environmental concerns. Pipeline operators must navigate this complex regulatory landscape and remain compliant with all applicable federal, state, and local requirements.

Pipeline Owner and Operator Responsibilities

The responsibility for pipeline decommissioning lies with pipeline owners and operators. These entities must:

• Develop comprehensive decommissioning plans that outline the entire process
• Submit required applications and obtain necessary permits before beginning work
• Properly clean pipelines to remove all traces of hydrocarbons and potentially hazardous materials
• Disconnect the pipeline from active supply sources and seal all access points
• Document all decommissioning activities and submit verification reports to regulatory agencies
• Monitor decommissioned pipelines left in place to ensure ongoing safety and environmental protection

The decommissioning process typically involves several critical steps: pipeline purging with inert gas (usually nitrogen), thorough cleaning with specialized equipment, disconnection from product supply sources, and either removal or in-place abandonment with proper sealing. Offshore decommissioning presents additional complexities due to marine environments and higher operational costs.

Safety and Environmental Protection Standards

Regulatory standards for pipeline decommissioning prioritize worker safety, public health, and environmental protection. BSEE regulations specifically require that all decommissioning activities be conducted in a manner that is safe, does not unreasonably interfere with other uses of the Outer Continental Shelf (OCS), and avoids undue or serious harm to human, marine, or coastal environments.

For pipelines decommissioned in place, operators must ensure they do not pose hazards to navigation or commercial fishing operations. This may involve cutting and plugging pipeline ends, burying endpoints at least three feet below the seafloor, or covering them with protective materials as specified by regulators.

Environmental considerations are particularly important when abandoning offshore pipelines. Improperly cleaned pipelines can eventually corrode and release hazardous materials into marine ecosystems. According to a Bureau of Ocean Energy Management report, approximately 40% of offshore pipeline spills were related to natural causes like hurricanes and mudslides, highlighting the importance of thorough decommissioning practices.

Documentation and Reporting Requirements

Proper documentation is crucial for regulatory compliance in pipeline decommissioning. Pipeline operators must submit detailed reports to the appropriate regulatory agencies, including:

• Initial decommissioning applications outlining proposed procedures
• Final reports documenting completed decommissioning activities
• Certification that all regulatory requirements have been met
• Documentation of any mitigation measures implemented

For U.S. pipelines abandoned after October 10, 2000, operators must submit data to the National Pipeline Mapping System (NPMS) as required by the Standards for Pipeline and Liquefied Natural Gas Operator Submissions. This information helps maintain accurate records of pipeline infrastructure and ensures accountability for decommissioned assets.

Pipeline decommissioning regulations ultimately aim to protect public safety and the environment while allowing operators to safely end operations when pipelines reach the end of their useful lifespan. Proper regulatory compliance not only fulfills legal obligations but also demonstrates a commitment to responsible environmental stewardship and community safety.

Final Words

Pipeline decommissioning and recycling are essential for environmental protection, public safety, and resource sustainability as oil and gas infrastructure reaches the end of its service life. By adopting a structured approach, including thorough cleaning, safe disconnection, regulatory compliance, and responsible material recovery, pipeline operators can minimize ecological risks while maximizing recycling benefits for valuable metals.

As regulations change and technology advances, industry leaders are continually developing safer and more sustainable methods for pipeline retirement and reuse. Call Okon Recycling at 214-717-4083 for all your recycling needs.
