Froth Flotation: Process, Components, and Key Operational Considerations in Mineral Separation

Imagine a technology so effective it can separate valuable minerals from worthless rock using nothing but bubbles. Froth flotation is precisely that—a sophisticated physical separation process that transformed the mining industry in the early 20th century. This ingenious technique works by exploiting the fundamental surface properties of different minerals.

At its core, froth flotation separates particles based on their hydrophobicity—their tendency to repel water. The process begins with finely crushed ore mixed with water to create a slurry. When air bubbles are introduced into this mixture, hydrophobic particles attach to these bubbles and rise to the surface, forming a mineral-rich froth layer. Meanwhile, hydrophilic particles that readily interact with water remain suspended in the slurry and eventually sink to the bottom.

What makes froth flotation truly remarkable is its versatility and adaptability. Mining operations use specific chemical treatments called collectors, frothers, and modifiers to enhance the separation process. Collectors selectively coat desired mineral surfaces to increase their hydrophobicity. Frothers help create stable bubbles that can carry the valuable minerals to the surface. Modifiers control pH and other conditions to optimize separation. This adaptable process handles everything from copper and zinc sulfides to coal, phosphates, and even recycled materials, making it an indispensable tool in modern resource recovery and sustainability efforts.

What are the Key Components of a Froth Flotation System?

Froth flotation represents a complex system where various components work together to achieve efficient mineral separation. The performance of this system depends on the careful balance of chemical, equipment, and operational elements. Let’s examine each category in detail.

Chemical Components

The chemistry of froth flotation plays a vital role in determining which minerals float and which sink. Several key reagents work together to create optimal flotation conditions:

• Collectors: These specialized reagents selectively attach to mineral surfaces and render them hydrophobic (water-repellent). Collectors typically consist of a polar end that bonds to the mineral and a non-polar hydrocarbon chain that extends outward, creating a hydrophobic surface. Xanthates are commonly used for sulfide minerals, while fatty acids work well for oxide minerals.
• Frothers: These chemicals stabilize air bubbles in the flotation cell, creating a persistent froth that can carry minerals to the surface without breaking prematurely. Common frothers include alcohols like MIBC (Methyl Isobutyl Carbinol) and polypropylene glycols. The frother concentration directly affects bubble size and froth stability.
• Activators: Some minerals require activation before they respond to collectors. Activators are chemicals that modify mineral surfaces to enhance collector adsorption. For example, copper sulfate is often used to activate sphalerite (zinc sulfide) before xanthate collection.
• Depressants: These reagents prevent unwanted minerals from floating by selectively inhibiting collector adsorption. Common depressants include lime, cyanide, and organic compounds like starch, which can prevent iron oxides from floating.
• pH Modifiers: The pH of the flotation pulp significantly affects reagent performance and mineral selectivity. Common pH modifiers include lime, soda ash, and sulfuric acid. Many flotation processes operate in alkaline conditions to optimize selectivity between different sulfide minerals.

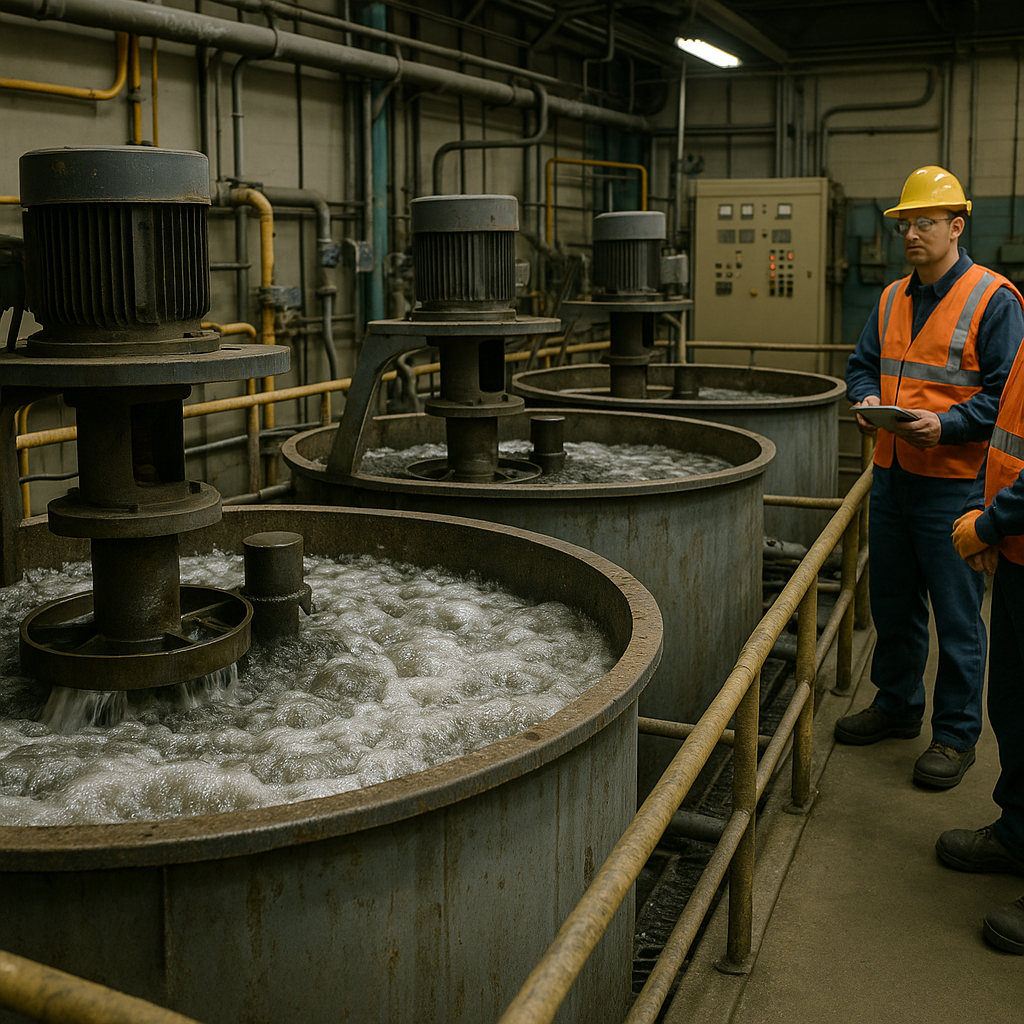

Equipment Components

The physical equipment used in flotation provides the environment where separation occurs. Key equipment components include:

• Cell Design: Flotation cells come in various designs, including mechanical cells with impellers and flotation columns that use countercurrent flow. The cell geometry affects mixing patterns, bubble-particle contact opportunities, and froth removal efficiency.
• Agitation Systems: Mechanical agitators create turbulence that ensures particle suspension and promotes bubble-particle collisions. The impeller and stator arrangement in conventional cells draws slurry through the mechanism while dispersing air throughout the pulp.
• Air Flow Systems: Air introduction methods vary from mechanical air entrainment to external bubble generators. The air flow rate and bubble size distribution critically affect flotation performance. Smaller bubbles provide more surface area for particle attachment but may not have enough buoyancy for larger particles.
• Cell Bank Configuration: Individual flotation cells are arranged in banks to form circuits for rougher, cleaner, and scavenger stages. The configuration determines residence time and recovery-grade relationships.
• Control Systems: Modern flotation plants use sophisticated control systems to monitor and adjust operational parameters like pulp level, air flow, reagent dosage, and froth depth.

Operational Parameters

Even with optimal chemistry and equipment, flotation requires careful control of operational variables:

• Feed Rate: The throughput of material affects residence time in flotation cells and the overall recovery. Maintaining consistent feed rates helps stabilize the flotation process.
• Mineralogy: The types, amounts, and liberation characteristics of minerals in the feed directly impact flotation performance. Variations in ore mineralogy often require adjustments to reagent dosages and operating conditions.
• Particle Size: Flotation works best within a specific particle size range, typically 10-150 micrometers. Particles that are too coarse may not attach to bubbles effectively, while ultra-fine particles can be difficult to recover due to poor collision efficiency.
• Pulp Density: The solid-to-liquid ratio in the flotation pulp affects reagent consumption, bubble mobility, and mineral recovery. Most flotation operations maintain pulp densities between 25-45% solids by weight.
• Temperature: Pulp temperature influences reagent activity, bubble formation, and mineral-bubble interactions. While most operations run at ambient temperature, some applications require temperature control.

These components form a highly interconnected system where changes in one area inevitably affect others. For example, increasing air flow might improve recovery but could destabilize froth or dilute reagent concentrations. Understanding these relationships is essential for troubleshooting and optimizing flotation performance.

The successful operation of a froth flotation system requires careful balancing of all these components. Metallurgists must continuously monitor and adjust these variables to accommodate changes in ore characteristics and production requirements. When properly managed, froth flotation provides an efficient and effective method for separating valuable minerals from waste materials.

What are the Key Operational Considerations for Froth Flotation?

Success in froth flotation operations depends on the careful balance of multiple interrelated variables. Each parameter affects others within a complex system, where changes in one area trigger compensating effects throughout the process. Understanding these key operational considerations is crucial for achieving optimal mineral recovery and concentrate grades.

Particle Size Distribution

Particle size significantly impacts flotation performance and recovery rates. The ideal particle size range for flotation typically falls between 5-300 μm. Particles outside this range present distinct challenges. When particles are too fine (below 5 μm), they may not effectively collide with air bubbles due to hydrodynamic forces. Conversely, coarse particles above 300 μm may be too heavy for bubbles to lift to the surface.

The relationship between particle size and froth stability is important. Finer particles generally promote greater froth stability due to better bubble surface coverage. As particle size increases, there is more burden on the frother to maintain stability. Consequently, operations processing coarser material often require higher frother dosages to achieve similar results.

Pulp Density and Slurry Considerations

Pulp density directly affects flotation kinetics, reagent consumption, and froth characteristics. Operating at the optimal percent solids is critical for both recovery and grade. Too dilute a pulp (low percent solids) results in greater spacing between particles, reducing bubble loading and froth stability. Conversely, excessively thick pulps may hinder bubble-particle contact and reduce flotation selectivity.

Different ores require different pulp densities for optimal performance. Clean, hard ores typically operate efficiently at around 30% solids, while clayey or slimy ores may require thinner pulps of only 15% solids. In some cases, slimes must be processed at concentrations as low as 5% solids, though often at the expense of reduced recovery.

Air Flow Rate and Bubble Dynamics

Air flow management is fundamental to flotation performance. Insufficient air flow reduces the number of available bubbles for mineral collection, while excessive aeration can destabilize the froth and reduce selectivity. The size of air bubbles also matters significantly. Smaller bubbles provide greater surface area for the same volume of air, improving fine particle recovery. For coarser particles, small bubbles allow multiple bubble attachments, reducing the chance of particle detachment.

Modern flotation operations carefully control both air quantity and bubble size distribution. Column flotation cells, with their external bubble generators, can produce consistently smaller bubbles than conventional mechanical cells, enabling better recovery across wider particle size ranges.

Froth Depth and Stability Control

Froth depth and stability are critical to achieving desired grade and recovery objectives. A deeper froth bed allows more time for entrained gangue to drain back into the pulp, improving concentrate grade. However, excessively deep froth can lead to excessive mineral losses through bubble collapse before collection.

Froth stability must be sufficient to allow removal from the flotation machine but not so stable that it becomes a persistent foam difficult to manage downstream. This balance is influenced by frother type and dosage, particle size, and the extent to which bubble surfaces are covered by solid matter.

Coal flotation operations face particular challenges with froth stability and handling due to coal’s naturally hydrophobic nature. The froth must be stable enough to capture coal particles but not so stable that it becomes unmanageable in downstream processing.

Reagent Selection and Dosage

Reagent management is crucial in flotation operations. The main categories include collectors (which render specific minerals hydrophobic), frothers (which stabilize air bubbles), and modifiers (which control selectivity). Dosage optimization requires balancing factors such as ore mineralogy, grind size, and water chemistry.

Collector usage must be carefully controlled. Insufficient collector results in poor recovery, while excess can lead to non-selective flotation and reduced concentrate grade. Similarly, frother dosage must be precisely managed. Alcohol frothers like MIBC typically work well for fine particle flotation but are less effective for coarse particles. Polypropylene glycol-based frothers often provide better recovery for coarse particles but with lower selectivity.

pH modifiers such as lime, sodium hydroxide, or sulfuric acid play critical roles in controlling selectivity between minerals. The adsorption of collectors like xanthate on sulfide minerals is highly pH-dependent, making pH control essential for the successful differential flotation of complex ores.

Retention Time and Cell Configuration

Different minerals require varying flotation times to achieve optimal recovery. For example, copper minerals typically need 13-16 minutes in industrial rougher cells, while coal may only require 3-5 minutes. Laboratory tests must be scaled up appropriately when designing industrial circuits, as plant-scale operations generally require about twice the flotation time of laboratory tests.

The configuration of flotation cells into circuits dramatically affects performance. Conventional mechanical cells are typically arranged in rougher, cleaner, and scavenger circuits to maximize both recovery and grade. Column flotation cells provide countercurrent flow of slurry and air, often achieving performance equivalent to three to five stages of conventional flotation.

Circuit variations, such as split-feed arrangements where different size fractions are processed separately, may be employed for difficult separations. These configurations recognize that different particle sizes often respond differently to flotation conditions and may benefit from tailored processing approaches.

Operational Control Strategies

Maintaining consistent flotation performance requires robust control strategies. Modern operations increasingly employ advanced monitoring technologies, including froth cameras, online analyzers, and automated control systems. These technologies help operators quickly identify and respond to changes in feed characteristics or process conditions.

Adaptability is crucial in addressing common operational challenges like fluctuating ore types. Operations often develop response protocols for different feed scenarios. For example, processing more oxidized ore may require adjustments to collector types or dosages. Similarly, dealing with clayey material may necessitate additional dispersants or modified pulp densities.

The flotation process is a complex engineering system where all parameters are interrelated. Successful operations require both technological solutions and experienced operators who understand how to interpret process behavior and make appropriate adjustments. Through careful control of these key operational parameters, mining operations can optimize both mineral recovery and concentrate grades, maximizing the value extracted from the ore.

Final Words

Froth flotation remains one of the most transformative and adaptable techniques in mineral processing, enabling efficient separation of valuable minerals from waste. Its success lies in the intricate balance of chemistry, equipment design, and operational control—all fine-tuned to maximize recovery and purity. As advancements in automation, reagent technology, and environmental management continue, froth flotation will play an even greater role in sustainable resource recovery and recycling.
