Gold Recovery from Electronics: Methods, Devices, and Environmental Impact

Did you know that your old smartphone contains hidden resources? Electronic devices we discard daily hold valuable gold deposits waiting to be recovered. From obsolete computers to broken phones, these items represent not just waste, but opportunities.

Gold harvesting from electronics involves extracting precious metals from discarded devices such as computers, phones, and circuit boards. This specialized recycling process recovers valuable materials while simultaneously reducing the growing mountain of electronic waste. A typical mobile phone contains approximately 0.2g of gold worth around £1.80—a small amount individually, but significant when processed on a larger scale.

The presence of gold in electronics is intentional; its excellent conductivity and resistance to corrosion make it ideal for electronic components. When these devices reach the end of their life, harvesting this gold offers a sustainable alternative to traditional mining while addressing the critical e-waste crisis that threatens our environment.

What Are the Most Common Gold Extraction Methods?

The remarkable value and rarity of gold have driven innovators to develop more efficient extraction methods. From traditional chemical processes to cutting-edge nanomaterials, the gold recovery landscape is continuously evolving. Let’s examine the most prominent extraction methods used today.

Aqua Regia Method

The aqua regia method is one of the most established chemical processes for gold extraction. This powerful solution combines hydrochloric acid and nitric acid in a 3:1 ratio, creating a yellowish-orange mixture that can dissolve gold when other acids cannot. The process works because the chloride ions from hydrochloric acid form soluble gold chloride complexes, while nitric acid serves as an oxidizing agent that helps dissolve the gold.

This method is particularly useful for extracting gold from electronic waste, where precious metals exist in thin layers on circuit boards and components. While effective, aqua regia presents significant safety challenges. The solution produces toxic fumes and requires careful handling with proper ventilation and protective equipment. Despite these drawbacks, its effectiveness at dissolving gold keeps it relevant in both small-scale recycling and larger industrial processes.

Cyanide Leaching

Cyanide leaching is the dominant industrial method for gold extraction from ores. The process involves treating crushed gold ore with a dilute cyanide solution, which dissolves the gold by forming water-soluble gold-cyanide complexes. Activated carbon or zinc is then used to recover the gold from this solution.

Though highly efficient for processing large volumes, cyanide leaching poses serious environmental concerns. The chemicals involved are extremely toxic to living organisms and can contaminate water sources if not properly contained. Modern operations implement stringent safety protocols and closed-loop systems to minimize environmental impact, but the inherent dangers have prompted ongoing research into greener alternatives.

Graphene Membrane Technology

Among the most promising recent innovations in gold extraction is graphene membrane technology. Reduced graphene oxide (rGO) has demonstrated remarkable capabilities for selectively extracting gold from complex solutions, even at very low concentrations. Unlike traditional methods, graphene-based extraction can achieve extraordinary efficiency—capturing over 1,000 mg of gold per gram of material—while maintaining selectivity that leaves other metals behind.

The process works through a reductive adsorption mechanism where the graphene areas of rGO donate electrons to gold ions, reducing them to metallic gold while allowing good dispersibility in solution. This approach shows particular promise for recovering gold from electronic waste leachates where gold exists alongside numerous other metals. The selective nature of graphene membranes significantly simplifies the extraction process by eliminating several purification steps.

Gravity Separation

For free-milling gold ores, where gold particles exist in their natural state, gravity separation offers a straightforward physical method that exploits gold’s high density. In this process, crushed ore is passed through water-based devices that allow heavier gold particles to settle while lighter materials wash away. Techniques range from simple gold panning to sophisticated equipment like sluice boxes, jigs, and centrifugal concentrators.

The primary advantage of gravity separation is its minimal environmental impact, as it requires no toxic chemicals. However, it typically recovers only coarse gold particles and works best when gold is relatively pure rather than chemically bound to other minerals.

Flotation

Flotation serves as an important method for processing complex gold ores, particularly those containing sulfide minerals. The process involves crushing and grinding ore, then mixing it with water and specialized chemicals that make gold-bearing particles water-repellent. When air is bubbled through this mixture, the gold-bearing minerals attach to the bubbles and rise to form a froth that can be skimmed off and processed further.

While less selective than other methods, flotation works effectively for large volumes of low-grade ore where other techniques might be economically unfeasible. It typically serves as a concentration step before further processing with methods like cyanide leaching.

Comparing Efficiency and Safety

Each gold extraction method presents distinct trade-offs between efficiency, cost, environmental impact, and safety considerations. Traditional chemical methods like aqua regia and cyanide leaching offer proven effectiveness but come with significant hazards. Newer approaches like graphene membrane technology show promise for dramatically improving both efficiency and safety but may require further development for large-scale implementation.

The gold extraction landscape continues to evolve as researchers develop more sustainable approaches. Innovations like graphene membranes represent an exciting frontier that could potentially transform recycling economics while reducing environmental impact. As electronic waste volumes grow globally, these advanced extraction technologies may prove crucial for recovering valuable gold resources from increasingly complex waste streams.

How Can Gold Be Extracted Safely at Home?

While professional recycling facilities are the most efficient at recovering precious metals, some hobbyists extract gold from electronics at home using simpler techniques. These DIY approaches can be effective if done correctly, but safety must always be the top priority.

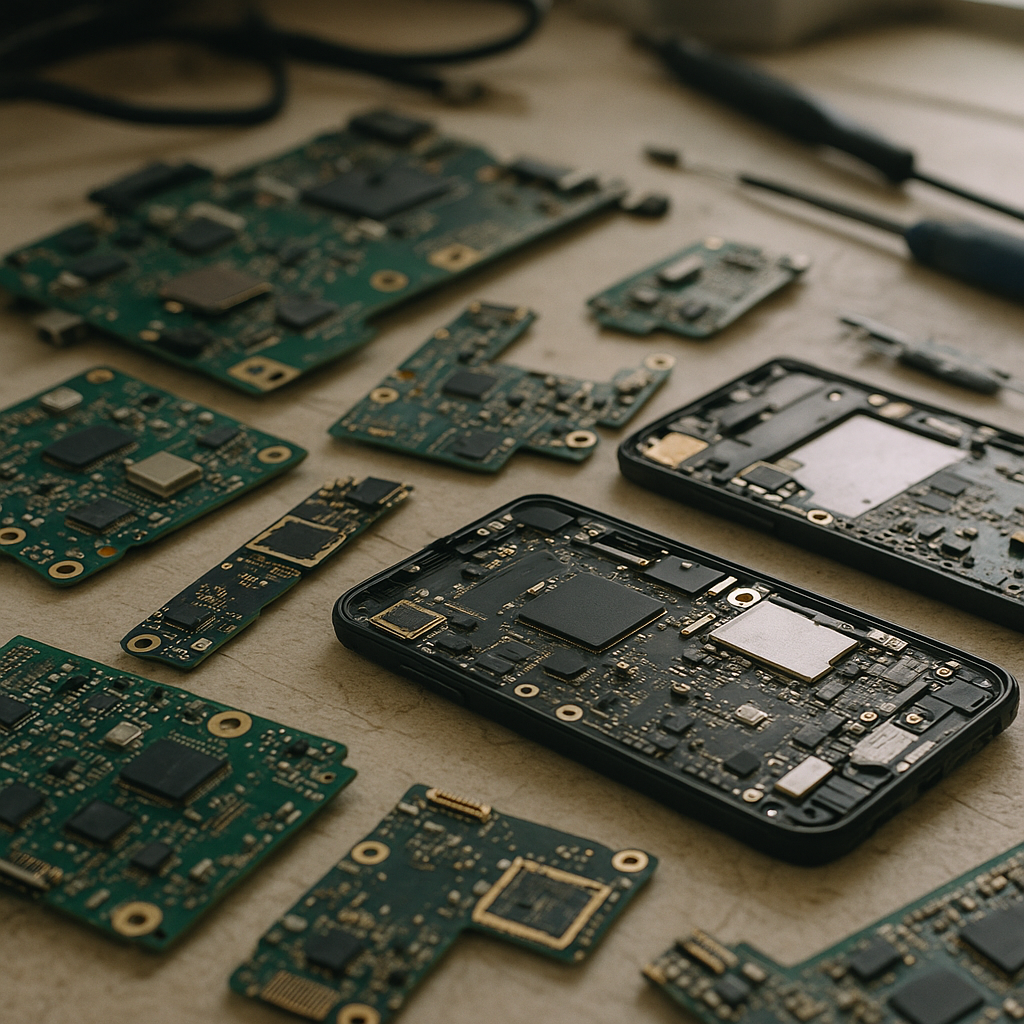

The process begins with collecting suitable electronics. Older devices typically contain more gold than newer ones. Computer motherboards, CPUs, RAM sticks, and mobile phone circuit boards are common sources. SIM cards and components on the back of LCD screens also contain small amounts of gold.

Once you have gathered enough materials, you need to properly disassemble the electronics. This requires basic tools like screwdrivers and pliers to carefully remove circuit boards and components. Handle these parts with care to avoid damaging gold-containing elements.

After disassembly, sorting becomes crucial. Use a magnet to separate gold-plated steel parts from other components, as they require different extraction methods. Non-magnetic components often contain the highest concentration of gold and should be processed separately.

Non-Chemical Extraction Methods

For those wanting to avoid harsh chemicals, several safer alternatives exist. One approach uses heat to extract gold. This involves using a propane torch to heat gold-containing parts in a heat-resistant vessel with borax, which lowers gold’s melting point. The molten gold can then be collected after cooling.

Another method uses water with non-toxic substances like borax. By boiling gold-containing parts in this solution, the gold separates from other materials and can be collected through filtration. This approach is gentler but may be less efficient than other methods.

Essential Safety Precautions

Regardless of your chosen method, certain safety measures are essential:

• Always work in a well-ventilated area, ideally outdoors
• Wear appropriate protective gear including goggles, gloves, and flame-resistant clothing when using heat
• Keep a fire extinguisher nearby when working with high temperatures
• Store all materials securely away from children and pets
• Research proper disposal methods for all waste materials

Even with these safer approaches, be aware that extracting gold at home has limitations. The yield is typically small—a standard mobile phone contains only about 0.2g of gold—and the process requires patience. Professional recycling services remain the most efficient and environmentally responsible option for recovering precious metals from electronics.

If you choose to attempt heat-based extraction, remember that working with high temperatures presents significant risks. Never leave heating equipment unattended, and ensure all flammable materials are kept at a safe distance. The gold recovery process should be approached as an educational hobby rather than a profitable venture.

For those interested in extracting gold from electronics as a hobby, starting with a small batch is advisable to master the techniques before scaling up. Document your results and refine your process with each attempt. Remember that responsible recycling, whether through DIY methods or professional services, helps reduce electronic waste while recovering valuable resources.

What Electronics Contain the Most Gold?

For gold recovery from electronic waste, some devices are more valuable than others. Certain electronics contain more gold, making them prime targets for recycling. Older electronics generally have more gold due to past manufacturing techniques and cost considerations.

Among consumer electronics, computer components are the richest in gold. Circuit boards, especially motherboards, feature gold in their connectors and pins. CPUs are particularly valuable, with older processors containing 0.2 to 0.5 grams of gold each. RAM modules and expansion cards, with their gold-plated contacts, add to their recycling worth.

Mobile phones also offer a notable source of recoverable gold. Though individual smartphones have about 0.034 grams of gold, their prevalence makes them significant collectively. Gold is most concentrated in SIM cards and circuit boards of these devices.

Industrial and specialized equipment often carries the most gold by weight. Professional video equipment stands out with some systems yielding up to 56 grams of gold per machine, far exceeding typical natural gold ore concentrations.

Gold Content by Device Type

The gold content considerably varies across electronics:

• Desktop computers: About 0.2 grams ($12 worth) of gold
• Laptops: Roughly 0.1 grams ($6 worth) of gold
• Smartphones: Around 0.034 grams of gold
• Televisions (LCD/LED): About 0.1 grams of gold
• Gaming consoles: Between 0.1 and 0.2 grams depending on the model
• Industrial video equipment: Up to 56 grams per machine

For recycling operations handling electronic waste in bulk, these small amounts add up. A ton of circuit boards can have 40 to 800 times more gold than an equal weight of mined gold ore.

The recovery of gold from these devices requires specialized equipment and expertise. Though individual extraction might not be cost-effective, recycling centers efficiently process large volumes. As traditional mining becomes pricier and more environmentally taxing, electronic waste recycling is becoming an essential gold source.

Conclusion: The Future of Gold Recycling from Electronics

The convergence of e-waste management and precious metal recovery presents a significant opportunity as electronic waste continues to increase. Gold recycling from electronics provides twofold benefits: reducing the environmental impact of traditional mining and creating economic value from materials that might otherwise end up in landfills. Technological advancements are improving this field, making extraction processes more efficient and environmentally friendly by minimizing chemical usage and energy consumption.
